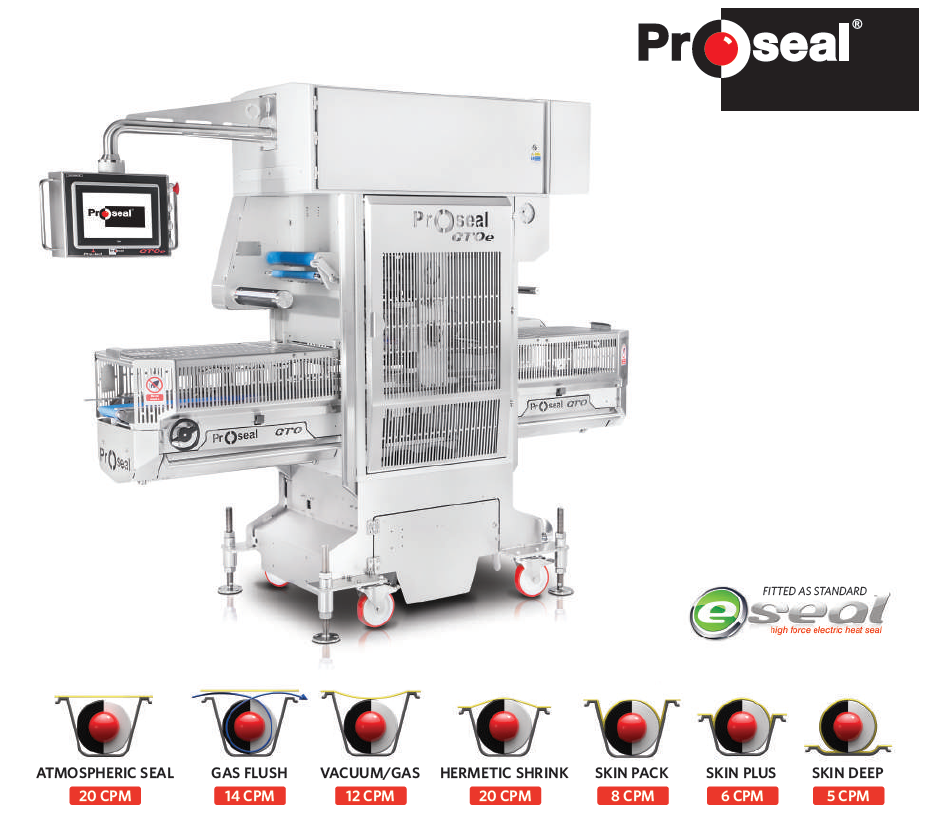

เครื่องซีลถาด Proseal รุ่น GTOe

GT0e Specifications

Height:	2187 mm
Standard Length:	2585 mm
Width:	975 mm
Weight:	1250 kg
Electrical Supply:	400V 3 phase + neutral (fused at 16A)
Transformer Variations:	480V 3 phase (fused at 20A)

GT0e Sealing capacity:

No. of trays	Length	Width	Depth	Diameter
One	300 mm	439 mm	120 mm	270 mm
Two	300 mm	207 mm	120 mm	207 mm
Three	300 mm	104 mm	120 mm	104 mm
Four	300 mm	71 mm	120 mm	71 mm

GT0e Production Speed:

Up to 5 cycles per minute Skin Deep max

Up to 12 cycles per minute Vacuum Gas

Up to 14 cycles per minute Gas Flush

Up to 20 cycles per minute Standard Seal
