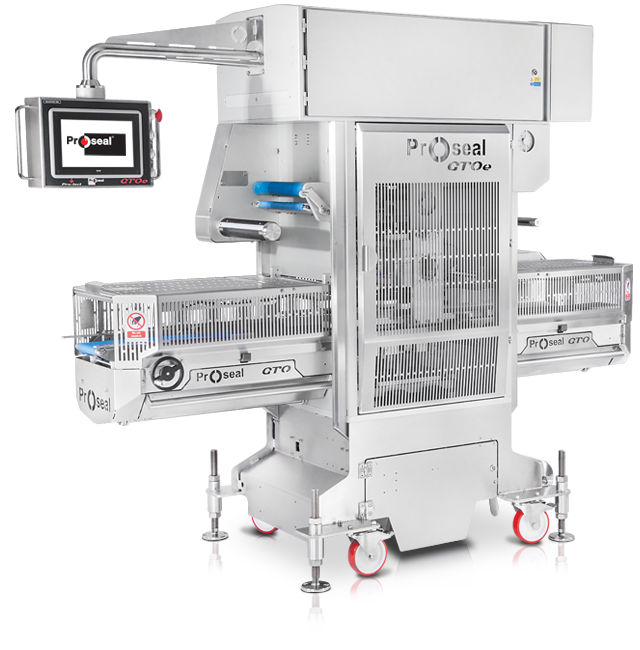

เครื่องซีลฝาและถาด ยี่ห้อ Proseal รุ่น GTOe

Proseal GT0e

Specifications

Height:

2187 mm

Standard Length:

2585 mm

Width:

975 mm

Weight:

1250 kg

Electrical Supply:

400V 3 phase + neutral (fused at 16A)

Transformer Variations:

480V 3 phase (fused at 20A)

GT0e Sealing capacity:



No. of trays

Length

Width

Depth

Diameter

One

300 mm

439 mm

120 mm

270 mm

Two

300 mm

207 mm

120 mm

207 mm

Three

300 mm

104 mm

120 mm

104 mm

Four

300 mm

71 mm

120 mm

71 mm

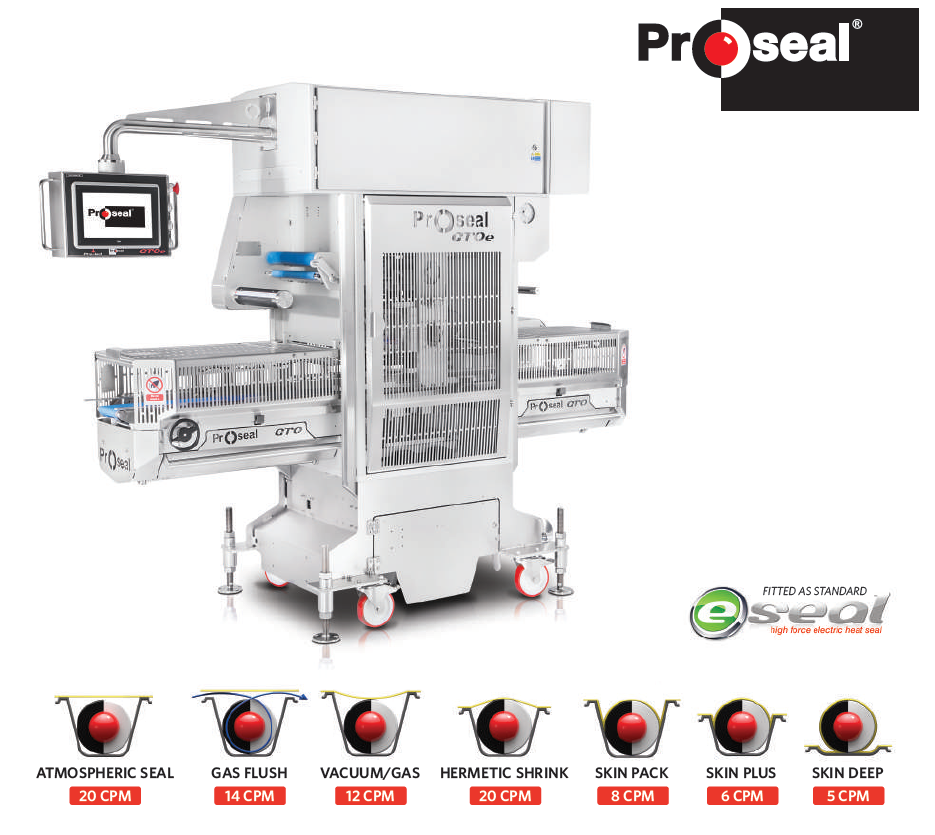

GT0e Production Speed:

up to 5 cycles per minute Skin Deep max

up to 12 cycles per minute Vacuum Gas

up to 14 cycles per minute Gas Flush

up to 20 cycles per minute Standard Seal
