เครื่องซีลฝาและถาด ยี่ห้อ Proseal รุ่น GT1e

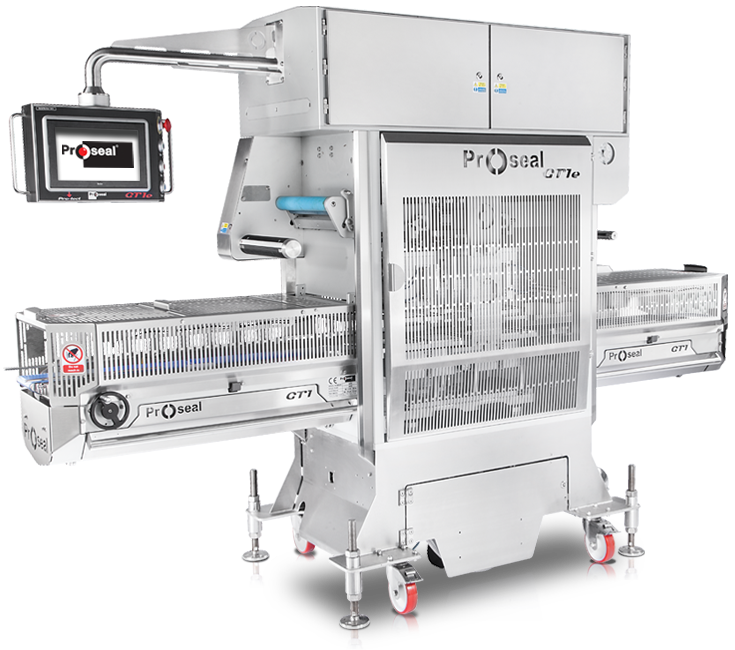

Proseal GT1e

Specifications

Height:	2188 mm
Standard Length:	3222 mm
Width:	976 mm
Weight:	1350 kg
Electrical Supply:	400V 3 phase + neutral (fused at 16A)
Transformer Variations:	480V 3 phase (fused at 20A)

GT1e Sealing capacity

No. of trays	Length	Width	Depth	Diameter
One	300 mm	670 mm	120 mm	270 mm
Two	300 mm	331 mm	120 mm	270 mm
Three	300 mm	212 mm	120 mm	212 mm
Four	300 mm	129 mm	120 mm	129 mm
Five	300 mm	98 mm	120 mm	98 mm

GT1e Production Speed

up to 5 cycles per minute Skin Deep max

up to 12 cycles per minute Vacuum Gas

up to 14 cycles per minute Gas Flush

up to 20 cycles per minute Standard Seal
